What Is a Battery Swap Cabinet? How Does It Work?

What Is a Battery Swap Cabinet? How Does It Work?

Electric two-wheelers, including electric bikes and scooters, have become one of the most popular urban transportation tools across the globe. They are favored by ordinary commuters and delivery workers for their low cost, flexibility and eco-friendly features. However, long charging time, insufficient private charging spots and potential fire risks of indoor charging have long been the biggest pain points restricting users’ travel experience. To solve these problems, battery swap cabinets have emerged as an innovative and efficient energy-supplying device, creating a new “swap instead of charging” model for the electric two-wheeler industry.

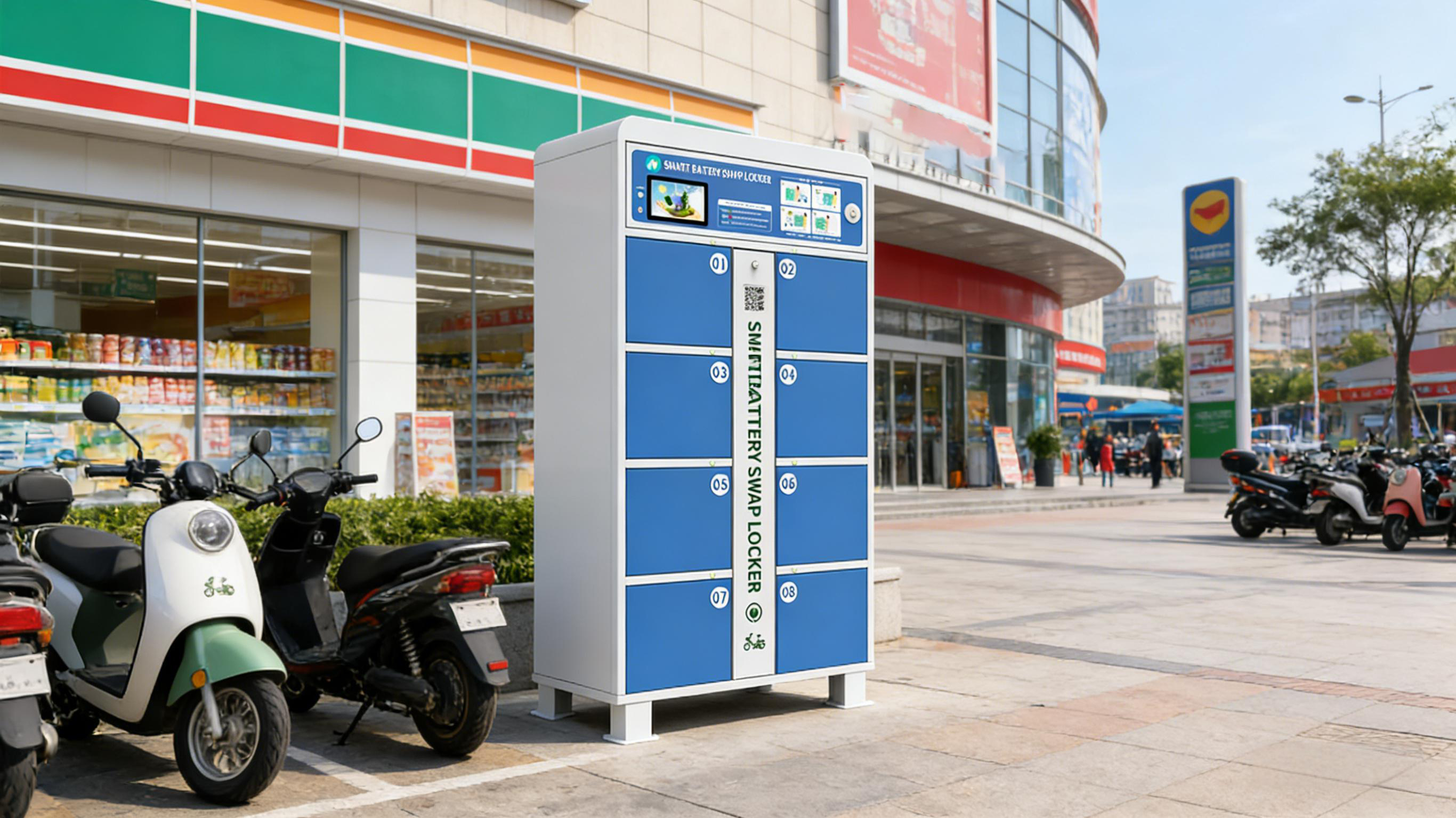

For most foreign clients who are familiar with charging piles, a battery swap cabinet is a brand-new supplementary infrastructure. Simply put, a battery swap cabinet is an intelligent network-connected device similar to a parcel locker. Divided into multiple independent sealed compartments, it integrates battery storage, automatic charging, real-time safety monitoring and one-click battery replacement. Different from charging piles that directly power vehicles, this device focuses on battery swapping: users can exchange their drained batteries for fully charged standard batteries in one minute, which is the core advantage that distinguishes it from traditional charging equipment.

A complete battery swap system consists of three core parts, covering hardware, matched batteries and intelligent software. The hardware refers to the main cabinet and extended cabinets. Each independent compartment is equipped with an exclusive charging module, temperature control system and electronic safety lock to work independently without mutual interference. Every supporting lithium battery is embedded with an RFID chip, which records real-time data such as battery health status, charging cycles and voltage to prevent faulty batteries from being put into use. In addition, the cloud management system and mobile applications support remote monitoring, user authentication and intelligent scheduling for all cabinets.

The operating procedure of battery swap cabinets is simple and user-friendly, requiring no professional skills. The entire swap process takes less than 60 seconds. Firstly, users scan the QR code on the cabinet via a mobile app to finish identity verification. After confirming usage qualifications, the system will automatically assign an available compartment with a fully charged battery and unlock the door intelligently. Secondly, users take out the charged battery and install it on their electric vehicles, then place the exhausted battery into an empty compartment of the cabinet. Finally, close the compartment door, and the cabinet will automatically identify the battery information and start adaptive charging. Users can finish the whole process effortlessly.

Safety is the top priority of battery swap cabinets, and they adopt multi-layer protection mechanisms to eliminate hidden dangers. Once a depleted battery is stored in the cabinet, the built-in system will conduct comprehensive inspections on temperature, internal resistance and current to screen out damaged, swollen and aging batteries. During the charging process, the device applies segmented intelligent charging to adjust current dynamically, effectively avoiding overcharging and battery damage. Meanwhile, fire extinguishers, smoke detectors and heat dissipation systems are installed inside the cabinet. The system can cut off the power instantly in case of overheating or short circuits to prevent fire accidents.

Compared with traditional charging piles, battery swap cabinets bring benefits to users, operators and urban managers simultaneously. For individual users, it eliminates lengthy waiting time for charging and the safety hazards of indoor charging. For food delivery and courier riders, rapid battery replacement greatly improves work efficiency. For cities and property managers, centralized outdoor battery management puts an end to chaotic cable charging and reduces urban fire risks.

As the global low-carbon transportation industry develops rapidly, battery swap solutions have proven their market value. Easy to install and maintain, battery swap cabinets are suitable for residential communities, commercial plazas and service stations. With continuous technological optimization, this cost-effective energy supply facility will become a mainstream supporting facility for electric two-wheelers, providing a safer, faster and more convenient green travel solution for cities worldwide.
